New from automotive goodies maestros, Car Builder Solutions is this new Universal Air Conditioning Unit, which is an all-in-one version of their existing #AIRCON2 unit.

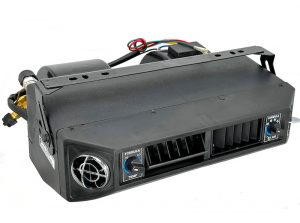

The front facia incorporates built-in temperature and fan speed controls, two 50mm diameter, swivelling, chrome ‘eyeball’ vents and two, 95mm x 45mm rotating vents with rocking vanes.

The unit can be mounted directly under your dash with everything within easy reach and with much-simplified installation. All other specifications are the same as #AIRCON2.

Size 410mm x 360mm x 160mm.

Straightforward installation with detailed instructions. It has a cooling capacity of 10,800 BTU with a maximum airflow of 200 cfm.

The Universal kit includes:

Under-dash unit with double squirrel cage, three-speed fan, pre-fitted expansion valve and two rocking vane outlet vents on the front facia.

Desiccant drier with Trinary safety/radiator fan switch.

Complete set of hose unions, ‘O’ rings and charging/service ports.

Mounting brackets, drain hose and fused power feed cable.

NOTE: Installation requires an engine-driven compressor and condensing radiator (possibly with a cooling fan).

Hose lengths can be determined and purchased after the installation of components.

A local Air Conditioning specialist can charge and test the system for you.

For UK customers Car Builder can now offer a crimping service for your hoses. For just £50 they will collect your boxed-up hoses and unions, crimp them and send them back to you.

Full instructions on how to prepare the hoses and unions will be sent with the kit.
