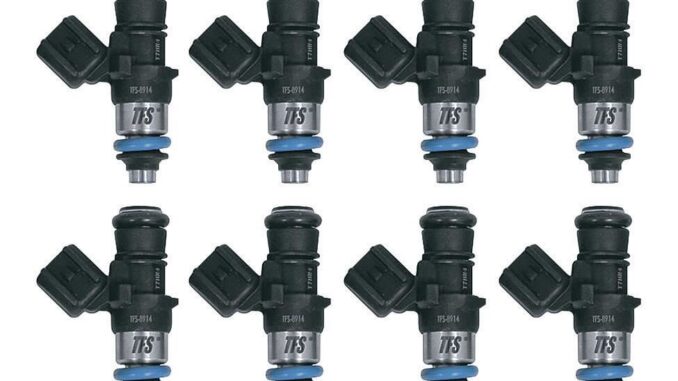

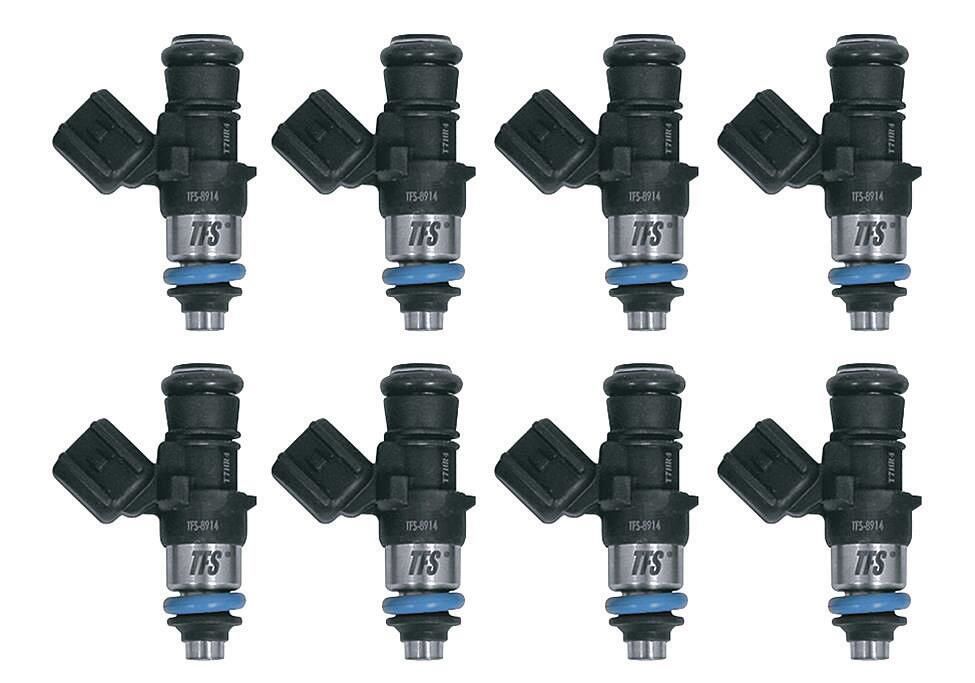

Trick Flow’s High-Performance Flow-Matched Fuel Injectors are precision dynamic flow-matched to provide consistent, balanced fuel delivery to each cylinder in your engine. That improves power, reduces emissions and allows for safer engine operation when pushing the limits of performance.
Trick Flow sent flow-matched injector sets to multiple US-based third-party labs for testing. The verdict? Trick Flow High-Performance Flow-Matched Fuel Injectors produced consistent, matched results on a variety of test benches.
Trick Flow High-Performance Flow-Matched Fuel Injectors are available for GM Gen III/IV LS, Ford Modular 2V/3V and Ford small block Windsor in these flow ratings:
•42 lbs./hr.
•80 lbs./hr.
•110 lbs./hr.
•156 lbs./hr.
•205 lbs./hr.
Other features include:
•Industry-leading atomisation and spray pattern
•Linear flow at very low pulse widths
•High-impedance design
•Ultra-compact EV14-style bodies with all stainless steel internals
•USCAR connectors
•8- to 18-volt operating range
•100 psi maximum operating pressure
•Compatible with gasoline, methanol and E85 fuels
•Viton O-rings included
•Sold in matched sets only
Injector sets for GM L59/LMG, LS2, LQ4, and L92/96 include billet aluminum injector spacers. The sets for L59/LMG, L92/96, and LQ4 also include fuel rail spacers.
Injector Sets for Ford Windsor/GM LS1 come with billet aluminium injector spacers, USCAR/EV6 connectors and Jetronic/Multitimer connectors.
To access the full potential of Trick Flow High-Performance Flow-Matched Fuel Injectors, full characterization data is available to ensure a drop-in, no hassle tuning experience with your stock or standalone ECU.
All you need to do is find your part number in the list and download the corresponding spreadsheet. Each spreadsheet contains a tab for GM, Ford, Chrysler, and common standalone ECUs. The tables in each spreadsheet are calculated and formatted for easy copy-and-paste insertion into the corresponding tables in your tuning software.
Summit Racing also carries Trick Flow Fuel Injector Spacers plus Trick Flow Harness Adapters in USCAR to Multec and USCAR pin/connector versions.
FIND THE TRICK FLOW HIGH-PERFORMANCE FLOW-MATCHED FUEL INJECTORS FOR YOUR ENGINE
