There are assembly manuals and then there is the Dutton assembly manual for the MX-5 Mk3-based Phæton 5, which according to Tim Dutton, is bringing a new dimension to kitcar building.
The all new Dutton assembly manual for 2026 (£15 inc p&p refunded with kit) contains 47 pages, 75 large colour photos and is ring-bound so all pages open flat and in clear – easy to read – print.
The first six pages are a preamble explaining the layout of the manual, it is then split into three sections. It can also be downloaded FOC from Tim’s website, but when I downloaded one it used an entire colour print cartridge due to the sheer number and high quality of the photos (so best do it at work, eh?!).
Section 1 Mazda strip down
Section 2 Rolling chassis/power unit build up
Section 3 Re-fitting body and final assembly
All parts listed in green are supplied loose and as standard in the kit.

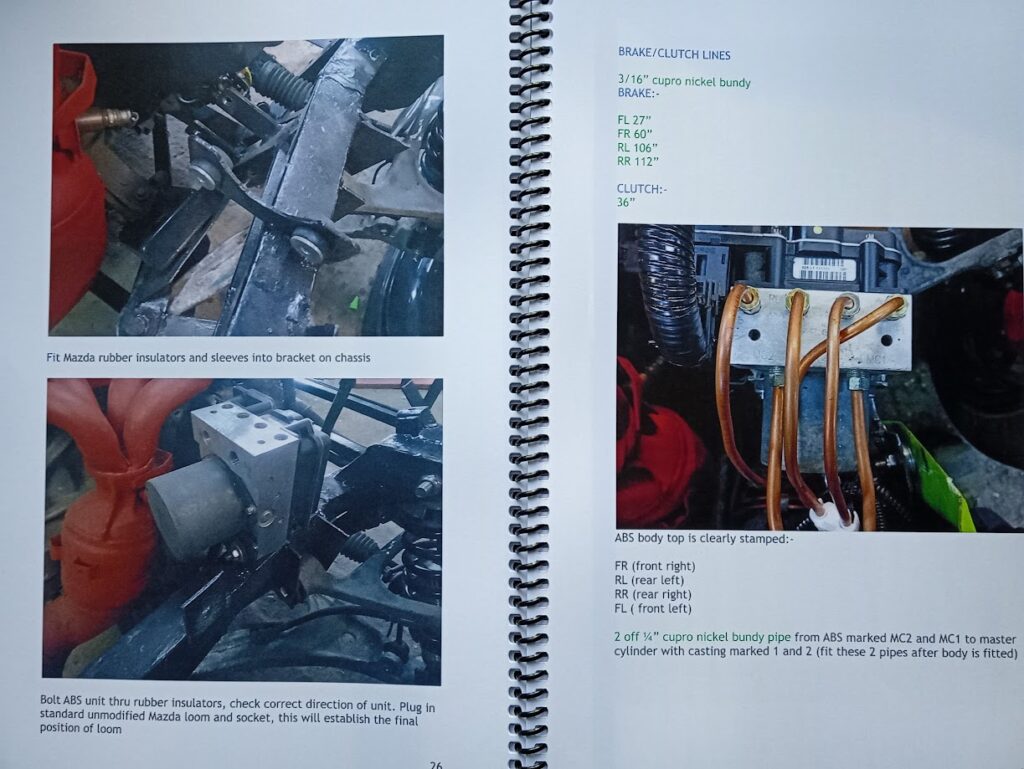

Typical pages 26/27
Attention to detail, two pages, three photos and copy just to fit the ABS unit.

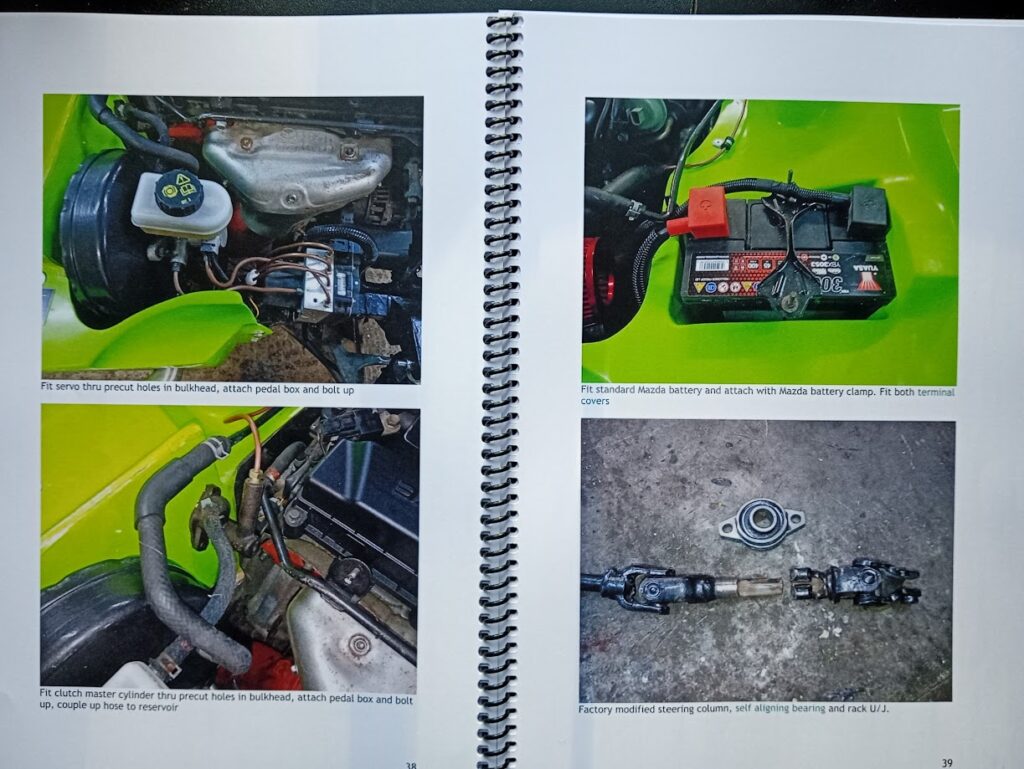

Typical pages 38/39
A couple of the multitude of factory pre-drilled/cut panels as standard in the kit.
https://www.timdutton.com – factory@timdutton.com or https://www.facebook.com/duttoncars and https://www.youtube.com/@DuttonCars
