Building a steering system for cars with little under-bonnet space can be an exercise in frustration. You’ve got to work it around things like firewalls, headers, and frame rails that often forces you to resort to weird steering angles with multiple U-joints and support bearings.

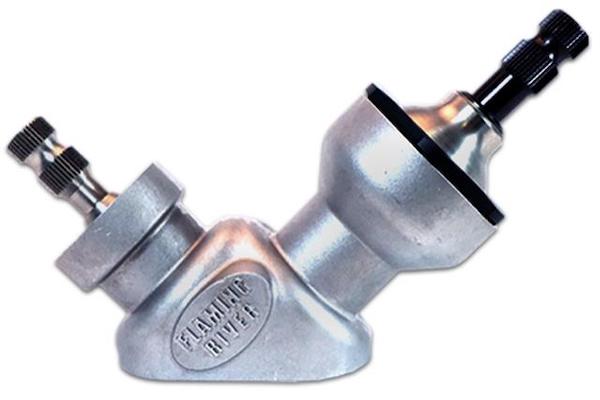

The Flaming River VDOG™ steering box eliminates a lot of those hassles. The gear-driven box has 3/4-36 splined output shafts that sit 90 degrees to each other, providing maximum clearance in spaces where more traditional U-joint angles won’t work.

The output shaft to your steering box or rack and pinion rides in an articulating ball – you can set the shaft at any angle up to 35° to clear whatever’s in the way.

The Flaming River VDOG steering box can be mounted vertically or horizontally and is set at a 1:1 ratio so it won’t affect your steering ratio. It’s available in aluminium with a natural finish or any of Flaming River’s powdercoat finishes.

You can also get a VDOG in billet aluminium.
