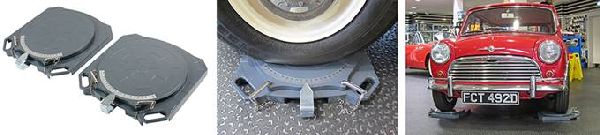

These new steering turntables (part number 77158) from Gunson are supplied as a pair and enable the user to check the steering angle on full lock to ensure the steering is centralised; check toe in/toe out on turns; and check the caster and KPI (king pin inclination) when used in conjunction with the Gunson 77099 Caster, Camber and KPI gauge.

To accurately measure caster angle you need to rotate the wheels 15- or 20-degrees in either direction. The big advantage of these turntables is that they are manufactured from aluminium, thus are lightweight and easily portable (each turntable weighs 5kg).

Suitable for use on both kit, classic and modern vehicles as they can handle a maximum weight each of 2000kg (4000kg the pair). The range across the turntable is +/- 50˚ in 1˚ increments, offering exceptional accuracy, particularly important in modern vehicles that use variable ratio steering racks or variable rate power steering systems.

For this reason, it is even more vital than ever that the steering system be correctly centralised before setting/checking any steering and suspension geometry.

The turntables can be used on a vehicle hoist in conjunction with a 3D wheel alignment machine, or used on a level workshop floor as stand-alone turntables. They can be locked to keep them central as the vehicle is positioned onto the turntables, then the locking pins are removed to begin checking and adjustment.

Gunson 77158 is available now from your local stockist and typically priced at £499 inc VAT.

Always remember to check for the best prices and special offers. More details from www.gunson.co.uk ENDS.
